FRYER MACHINE TOOLS
When it comes to customizable, large machines and the Made in the USA option, Fryer is the Solution.
Why Fryer?
There are some very good reasons to consider a Fryer CNC Machine Tool.
From the first toolroom bed mill to today's 5 Axis universal mill, Fryer provides the ultimate in toolroom technology.
-
With over 30 years of excellence in toolroom machines, Fryer continues to expand, upscale & keep up with this fast-paced industry.
-
Modern 50,000 sq. ft. manufacturing facility with a hand-built assembly system and sophisticated quality control.
-
Local New England craftsmen, designing & building the machines. Fryers are Made in the USA.
-
Their USA operations allow for excellent engineering & applications support.
TOOL ROOM MILLS
Fryer put a lot of thought and design into these Tool Room CNC Milling Machine Tools.
Sold as a total solution for your tool room these powerful mills work both in CNC and manual modes, providing the versatility that tool rooms want.
Two Quality Series in this line of CNC Mills.
Fryer Tool Room Mills are just one of our machine tools for sale.
MB-Q SERIES MB-R SERIES
.jpg)
The MB-Q Series is a high-quality Tool Room CNC milling machine tool for small batch production.
Designed to be the ultimate mill for all your toolroom applications.
These machines are easier to use, more accurate & last longer than any other toolroom mill.
-
Equipped with a manual quill & manual handwheels, the "Q" Series give you the flexibility to use in manual, semi-CNC or full -CNC modes.
-
The conversational control makes programming easy so even one-off parts can be done quickly & efficiently.
-
Has the "Do One" cycles for pockets, drilling, bolt circles & more.
-
Reads standard G & M codes from CAD-CAM systems.
-
Solid model part verification.
-
Rigid tapping with peck feature.
-
Handwheel runs makes testing programs safer
-
10 HP 4,500 RPM CAT-40 taper spindle.
-
Standard 2-year warranty.
-
Made in the USA by American Craftsmen.
-
Find out more.
The Fryer MB-R Series is the perfect mill for job shop & toolroom applications.
Built to be the most accurate & reliable machine of its type, it is also extremely easy to use
-
Comes equipped with a rigid spindle & optional tool changer, allowing it to be capable of single or multi-part production.
-
The conversational control makes programming easy so even one-off parts can be done quickly & efficiently.
-
12 HP 8,000 RPM CAT-40 taper spindle.
-
12 or 20 tool automatic tool changer.
-
Rigid tapping with peck feature.
-
Rugged heavy duty Meehanite castings.
-
Absolute encoders-no homing required.
-
AND a 2-year warranty.
-
Made in the USA by American Craftsmen.
TOOL ROOM LATHES
If you are looking for powerful lathes made in the USA, you have come to the right place.
Fryer has several different Lathe Series to choose from.
These lathes were designed by tool makers and they included all the features that help them with their projects.
With 3 in their series, they are called Easy Turn Lathes:
These machine tools for sale have the quality, performances & finished products your shop needs to compete in this industry.
Easy Turn ET-TR Series Easy Turn ET-LC Series Easy Turn ET-XL Series
ET - TR Series
Easy Turn - Toolroom Turning
-
Manual, Semi-CNC or Full-CNC Modes
-
Easier to Use Than Conventional Lathe
-
Handle Driven “Do One” Cycles Eliminates Manual Set-Ups
-
Perfect for Prototype, Repair, Job Shop & Toolroom
ET - LC Series
Easy Turn - Large Capacity Turning
-
Easy-to-use Operator Interface
-
High Performance Drives & Motors
-
Simple Programming for One-Off Parts
-
Perfect for Large Parts
ET - XL Series
Easy Turn - Extra Large Capacity Turning
-
Easy-to-use Operator Interface
-
Fast Set-Up Buttons
-
Heavy Duty Construction
-
Perfect for Extra Large Part Machining
An ultra-precision spindle cartridge, C1 class double nut ballscrews and other premium components provide accuracy unmatched by any other lathe in this class.
The Fryer / Siemens 828-HS CNC is incredibly easy to use and features fast set-up and conversational programming.
The SL series is the perfect choice for shops requiring high rigidity, accuracy and ease of use.
SL Series
High Precision Slant Lathe
-
Ultra precision spindle cartridge
-
C1 class double nut ballscrews
-
45° slant bed and box ways for greater rigidity
-
Perfect for shops requiring high rigidity, accuracy & ease of use.
Fryer's Turret Lathe is a compact, innovative traveling column with a wide swing but small foot print.
A Machine Tool For Sale that does big jobs but with a small footprint.
The Fryer VT Series is a compact, large swing vertical turret lathe.
This series features an innovative traveling column design that allows a large swing in a small foot print machine.
The unique horizontal turret features excellent clearance for long and short tools alike.
The VT is available with full C axis contouring and positioning as well as a powerful live tool turret.
Equipped with Fryer / Siemens 828-HS CNC control that features shop floor conversational programming, G code programming, 3D graphics and fast set-up cycles.
PRODUCTIVITY
-
Fast set-up and programming system
-
Shop floor programming
-
Excellent for small lot production
-
Small foot print
-
Traveling column provides improved clearance
-
Siemens or Fanuc CNC
FEATURES
-
Compact design uses half the floor space
-
60” or 80” swing models
-
8 or 12 tool automatic turret
-
BMT-65 tooling for high rigidity
-
High torque geared headstock
-
C axis and live tooling
VERTICAL MACHINING CENTERS
Fryer's CNC Vertical Machining Centers come in Three Series.
MC-B Series, the High -performing Box Way Machining Center;
MC-L Series, which is a High- speed Linear Way Machining Center
And finally VB Series: Fryer's Extra Large Machining Centers.
MC-B SERIES:
Box Way Performance Machining Centers
-
Box way rigidity
-
24 tool ATC
-
40 or 50 taper
-
1,200 rapids
MC-40B
40" x 20" x 28"
MC-45B
45" x 25" x 25"
MC-60B
60" x 30" (35”) x 28" (38")
MC-80B
80" x 35" (40") x 30" (34")
MC-100B
100" x 35" (40") x 30" (34")
MC-30B
30" x 18" x 22"
MC-L SERIES:
MC-L Series
Linear Way High Speed Machining Centers
-
Roller type linear ways
-
30 tool ATC
-
40 taper Big Plus – 10,000 RPM
-
Fast 1,450 rapids
MC-24L
24” x 16” x 17”
MC-30L
30” x 20” x 20”
MC-40L
40” x 22” x 22”
MC-45L
45” x 25” x 25”
MC-60L
60” x 30” (35”)
x 28” (38”)
Find Out More About MC-L Machining Centers:
VB SERIES:
VB Series
Extra Large Travel
-
X travel to 160”
-
Simple Set-Up & Programming
-
Easy Loading of Large Parts
-
Excellent value
VB-60
60" x 30" x 28"

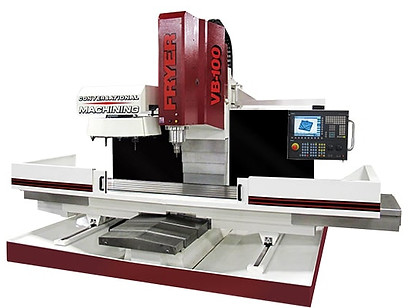

VB-80
80" x 35" (40") x 26" (34")
VB-100
100" x 35" (40") x 26" (34")
VB-120
120" x 40" (50") x 40"
VB-160
160" x 40" (50") x 40"
HORIZONTAL MACHINING CENTERS
HR SERIES:
HR Series
High Performance Horizontal Mills
-
Rugged fixed spindle design
-
Fast set-up and operation
-
Excellent small lot machining
-
Extra large capacity
FEATURES
-
24, 40, or 60 tool arm-type ATC
-
50 taper 6,000, 8,000 or 10,000 RPM spindle
-
40 taper 8,000 RPM spindle (HR-14 only)
-
High torque 40 HP spindle motor
-
Built-in contouring rotary table option
-
Semi or full guarding for easy loading
-
High pressure coolant thru spindle
PRODUCTIVITY
-
Built-in rotary table allows multi-side machining
-
Simple menu programming
-
Fast set-up keys and manual operation
-
Excellent for small lots
-
Easy access for large part loading
-
Available coolant thru spindle
The Fryer HR Series are high performance box way horizontal machining centers designed for your most demanding applications.
The high-torque 40 HP spindle motor and 6,000 RPM 50 taper spindle provide rigidity and torque (except HR-14).
Extra large castings, ballscrews and bearings provide accuracy and vibration dampening.
The user friendly Fryer - Siemens CNC allows shop floor programming for single piece runs or G code programming for high production.
HB SERIES:
HB Series
High Performance Boring Mills
-
20" bar type spindle
-
High performance cutting
-
Fast set-up and operation
-
Rugged box way construction
FEATURES
-
50 taper bar type spindle 4.33" diameter
-
20" travel bar fully programmable - W axis
-
3,000 RPM spindle speed
-
40 HP spindle with 360 ft/lbs of torque
-
24, 40, or 60 tool arm-type ATC
-
Standard coolant thru spindle.
PRODUCTIVITY
-
Built-in rotary table allows multi-side machining
-
Simple menu programming
-
Fast set-up keys and manual operation
-
Excellent for small lots
-
Easy access for large part loading
-
Rugged 4-box way construction.
Fryer's HB Series Boring Mills are heavy duty machines designed for high precision machining.
Equipped with a 20" travel bar type spindle and a powerful 40 HP spindle motor.
Rugged box way construction and high precision ballscrews ensure high performance cutting and high accuracy tolerances.
The user friendly Fryer - Siemens CNC allows shop floor programming for single piece runs or G code programming for high production.
TC-V Series
Vertical Traveling Column
-
X axis travel to 320"
-
Fixed table features high load capacity
-
Table divider for work zones
-
Y axis travel of 24" or 32"
TC-V Series
Traveling Column Machining Centers
-
X travel to 320”
-
Fixed table features high load capacity
-
Table divider for work zones
-
Y axis travel of 24” or 32”
5 AXIS MACHINING CENTERS
5X Series
5-Axis Simultaneous with Articulating Spindle
-
360° of rotation and 200° of spindle tilt
-
Designed for cutting steel & tough alloys
-
High power torque motors & Heidenhain glass scales
-
Perfect for aerospace, automotive & energy industries
