Elite High Performance Machinery

THE MAKING OF AN ICON, Elite Machinery truly was built for the most technical, precise, jobs. The durability of these machines, outpaces its competitors.

ELITE is METALWORKING at its Best

ELITE LATHES

HIGH PERFORMANCE MACHINERY

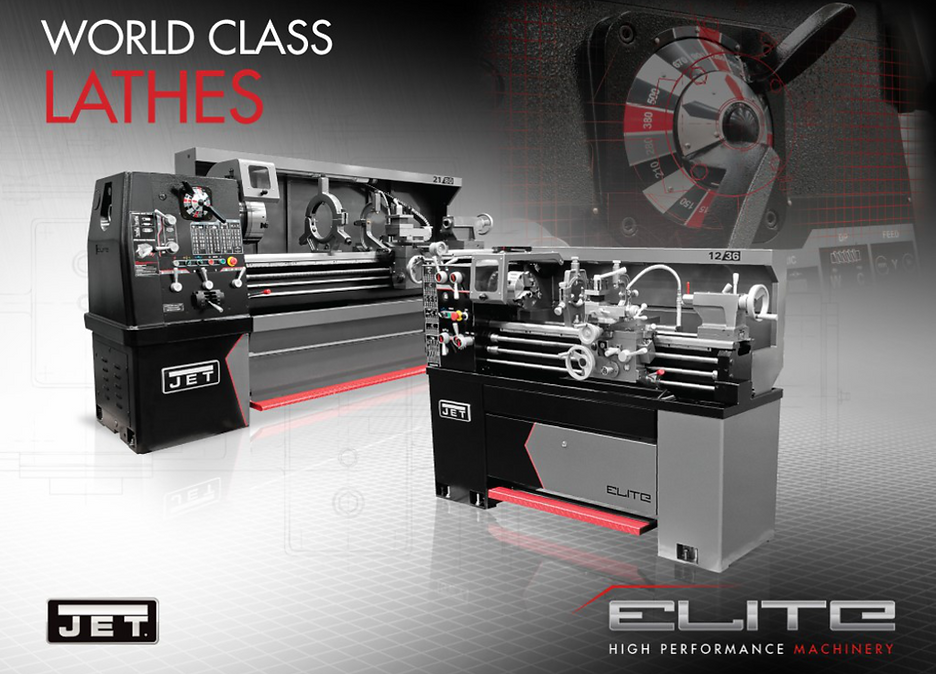

ELITE GEAR-HEAD LATHES:
PRECISION, DURABILITY, SAFETY
ELITE-LATHES-GEARHEAD-892506
  • Combining the durability and strength of Meehanite® castings with precision engineering, the Elite Geared Head Lathes produce high quality components turn after turn.
  • Designed with a universal gearbox to allow a wide range of threading without gear changes, and Turcite-B coatings between the bed and carriage to provide smooth and accurate movement, these machines provide the perfect blend of performance and reliability, that you expect from JET ELITE.
Jet's RED Assurance 3 year warranty
ELITE-LATHE-GH-892514

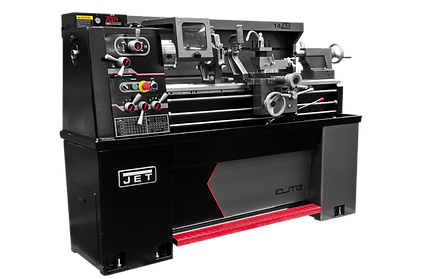

ELITE EVS LATHES

ELITE-EVS-LATHES -892030
ELITE-VSLATHE-892000
The ELITE EVS Lathes Feature:
  • Electromagnet assisted foot brake for rapid braking.
  • Inverter drive system provides infinitely variable spindle speeds.
  • Steady & follow rest feature double sealed ball bearing guides for smooth material movements.
  • Chuck guards are standard equipment on all ELITE lathes for increased safety.
  • Front facing chip pan allows easy chip removal from the front of the machine.
  • 1-1/2" Spindle Bore.
  • Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165 - 2000 RPM.
  • Hardened and ground gears in the headstock reduce vibration and deflection.
  • Class 7 precision taper roller bearings keep spindle run out to a maximum of 0.0004.
  • Fully lit with CNC style lighting, the enclosed full length splash guard is expertly designed to contain all chips and coolant.
  • Overload clutch at feed shaft prevents the carriage from crashing into the chuck.
  • Certified Meehanite® castings retain their tolerances and remain rigid through many years of machining.
  • Heavy-duty stand with full length foot brake.
  • LED RPM readout allows for precise turning speeds.
  • For added safety, the E-1440VS lathe follows strict guidelines and electrical requirements to be certified by CSA Group.
Elite High Performance Machinery

BANDSAWS:

 Elite thought of all the applications when producing these highly precise bandsaws. With various different types of bandsaws, there is one that will meet your shop's specific needs.
  • 16" Vertical Tilt Frame Bandsaw

  • ELITE: 18" x 31" EVS Dual Mitering Semi-Auto Structural Steel Cutting Bandsaw.

  • ELITE: 14" x 22" Dual Column Variable Speed Semi-Automatic Bandsaw.

  • ELITE Horizontal & Vertical Bandsaws
JET-RedAssurance_3Year_Warranty
ELITE-16-VERT-TILT-FRAMEBANDSAW-891210
ELITE-891170 18x31-EVS-DUAL-MITERING-SEMI-AUTO-STRUCT-STEELBANDSAW
elite-vert-band-saw-891115
Jet's Red Assurance 3 year warranty
ELITE-14X22-DUAL-COL-VS-SEMI-AUTO-BANDSAW-891160
elite-horiz-bandsaw-891050

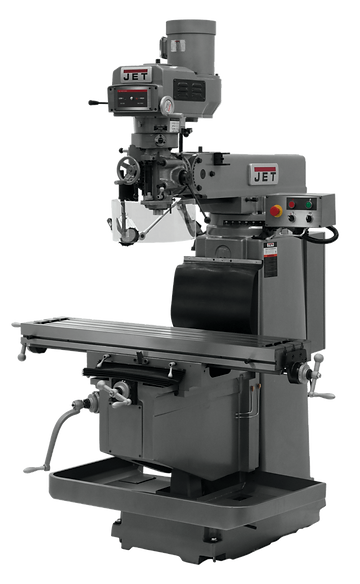

ELITE VARIABLE SPEED MILLING MACHINES

Welcome visitors to your site with a short, engaging introduction.

Double click to edit and add your own text.

elite-vs mill-894050
ELITE-894040 scraped

These mills are built with the same features as the CNC mills and can be fitted with the accessories such as a DRO system, power feed and air power drawbars.

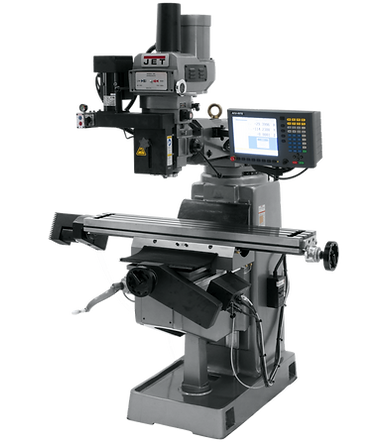

ELITE MILLING MACHINES:
CNC CONTROLS

FREE: Basic Online Training for the ACU-RITE® G2 Control with a purchase of an ELITE CNC mill. Value: $500.00

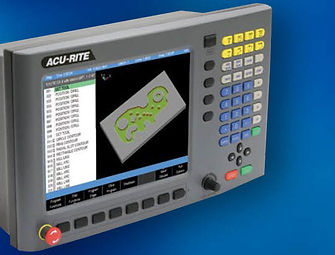

Millpwr G2
Jet's RED Assurance 3 year warranty
Manufactured for the highest performances.

These milling machines feature:


Spindle utilizes class 7210 (p4, ABEC-7) precision angular bearings for the industry leading spindle taper runout of 0.00012".

Chromium Molybdenum Spindle is fully hardened through a carbonizing treatment and is precisely ground to maintain strict tolerances.

Seamless, one-piece, steel quill is induction and precision ground for greater accuracy.


ELITE-MILLS-894040

The Y & Z-Axis ways are hand scraped to a minimum of 16 points per square inch for greater oil retention and smooth movements.



Heat treated and polished lead screws are supported by thrust bearings ensuring smooth, incremental movements of the table under load.



The table and saddle backlash is controlled by an advanced double nut design that eliminates endplay for precisely controlled lateral movements.



A patented Vari-disc key provides up to ten time the wear resistance than aluminum or brass keys.
