FAGOR FEEDBACK SYSTEMS

Getting the right system for your specific applications is easy with Rossi Machinery's over 45 years of working with measuring and feedback systems.  From diagnosing, selling and installing systems on all types of machine tools from mills, lathes, grinders to boring mills, we have expert skills that we offer you when buying your next system form Rossi Machinery Services.

Fagor Automation logo; we are your Fagor Automation Distributor.

About Fagor's Prokits

Fagor Automation provides high quality, high accuracy, state-of-the-art DRO’s and precision optical linear encoders for all types of conventional machine tools. From standard VKM’s & Toolroom Lathes to large VTL’s, Boring Mills and Engine Lathes.

PROKIT DRO Systems are designed to be a complete and easy solution for a broad variety of machine tool applications. Each PROKIT includes an Advanced Digital Readout as well as the precision scales with armored plug-n-play cable assemblies, plus a DRO arm and a bracketry kit specifically designed for the Machine Type and axes travels. For added simplicity, most PROKIT Systems can be packaged together within a single box.

Each PROKIT is available with either the 20i Innova Digital Readout or the 40i True Vision Digital Readout. The 20i DRO offers a value combination of features and price, while the 40i True Vision is provided with a high resolutions LCD TFT Color Screen as well as a host of advanced productivity features including Intuitive graphic help screens, solid graphics, audio alarms and much more, all as standard. Every PROKIT is provided with Fagor Automation’s precision linear encoders that offer guaranteed accuracy. Travels range from as little as a few inches to 100 feet and are offered in a wide variety of resolutions including incremental or absolute protocols. In most applications, the resolution is selectable by the customer at the keyboard. In addition, every single Fagor scale is subjected to an extensive final accuracy test. This quality control is executed utilizing a computerized measuring bench equipped with a laser interferometer located inside a climate controlled chamber at a constant temperature. The resulting test is included in your package with every scale as your Accuracy Certificate.

PROKIT systems are available for:

  • 2 axes Milling Applications

  • 3 axes Milling Applications (Knee or Quill)

  • All Lathe applications for both headstock or carriage mount

  • Multiple Grinding applications

  • General Purpose & Custom Applications

FAGOR's-LINEAR SELFGUIDING ENCODERS

PROKITS: FOR MILLS

What can you expect from the Fagor Prokits?  First, they come with a 3 -Year Warranty and much more.

  • PROKITS FOR MILLS FEATURE:

  • 40i TFT color / 20i T LED readout

  • (Resolution: 0.0002" / 0.0005" / 0.001")

  • Two precision scales with roller bearings & armored cables

  • Mounting Hardware

  • Installation Assistance

Fagor's ProKit for manual mills
Fagor-prokit-milllathe-dro_systems_prokit-full systems for lathes, mills
20it_lathes_prokit is a system for lathe w a swing arm.

Prokit DRO Systems Offered:

Fagor prokit-20i-m-for-mills

FEATURES: 20T Kits:

3 YEAR WARRANTY AND:

  • Bright LED display readout

  • Bolt, Linear & Arc hole

  • 20 work offset points

  • Tool Compensation

  • Linear Error Compensation

  • 2 axes System

  • Direct Metric to Inch conversion

  • Absolute/Incremental counting

  • Part Centering

  • Bolt hole cycle

  • Axes reset and preset

  • Data EEPROM backup

  • Machine error compensation

  • Fine/ course display selection

  • Hold Function

  • UL Approval

Prokit 40M: For Mills

Fagor 40im is a full prokit system for mills

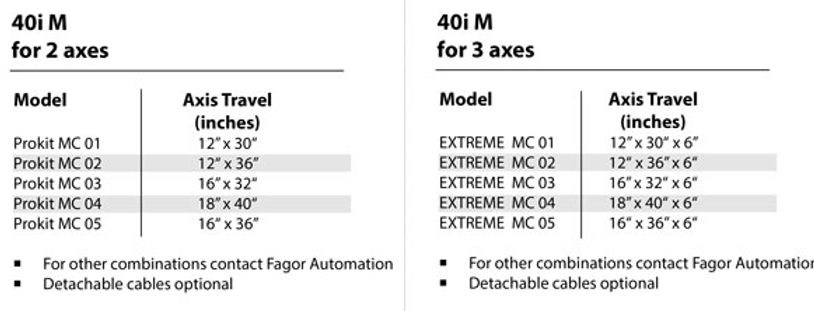

Fagor-spec-40i-m-specifications for the40i systems for mills

FEATURES:

3 YEAR WARRANTY AND:

  • TFT Color LCD Screen

  • Solid Graphics

  • Interactive graphic help screens

  • Bolt, Linear, Arc hole

  • 50 work offset points

  • Feedrate display

  • Tool radius compensation

  • 3 axes system

  • Pocket, Bolt- hole, Linear & Matrix Ccles

  • Conversational Graphic Help Screens

  • Solid Graphics with Sectional Views

  • 20 Tool offsets & radius tool compensation

  • Customizable for Milling, Boring, Turning, Grinding or General Purpose applications via parameter

  • Built-In calculator with auto recall

  • Positional Graphic Bar for easy positioning

  • Feedback alarms and software travel limits for safety with operator buzzer notification

  • Plane and Angle operator selection

  • USB port for easy communication and software updates

  • Distance-to-go updated in real time

  • Absolute/Incremental positioning

  • Inch/Metric positioning

  • Axes preset and zero

  • Scaling factor with shrinkage factor

PROKITS FOR LATHES

Fagor Chart prokit 20ichart- for all their 20i systems

20i T Features:

  • Bright, LED display readout

  • Tool offset

  • Scaling, Preset / Reset

  • Linear Error Compensation

  • 20iT LED readout / 40i TFT color

  • (Resolution: 0.0002" / 0.0005" / 0.001")

  • Two precision scales with roller bearings & armored cables

  • Mounting Hardware

  • Installation Assistance

Fagor-40it_is a full kit for lathes with swing arm

 Feedback Systems for Manual Machines

What sets Fagor's Measuring Systems Apart:

Measuring Methods
Fagor Automation uses two measuring methods in their incremental encoders:

  • Graduated glass: Linear encoders with a measuring length of up to 3 040 mm and rotary encoders.

  • Graduated steel: Linear encoders over 3 040 mm measuring length.

  • For lathes, milling machines and boring mills of up to 4 axes, with 5.7″ TFT monitor.

  • For EDM machines and grinders of up to 3 axes, with LED display.

  • Part programming.

  • Constant surface speed.

  • 3D graphic assistance for programming and simulation.

  • Intuitive operations.

  • Best view from any angle.

  • USB connection for copying data.

  • Axis preset.

  • Easy setup and auto-off.

  • Dimensions in mm and inches.

Fagor Automation offers their customers technical support and service for application installation and setup.

Fagor Digital Readouts For Mills & Boring Mills

DRO 20i

FAGOR_dro_20i_milling machine readout for a boringmill

 The DRO20i is a 2-axis DRO for milling machines and boring mills: Innova 20i M

2-axis DRO for milling machines and boring mills: Innova 20i M

  • Preset function

  • Absolute, Incremental and Io reference (home) signals

  • Resolutions from 0.1 microns on

  • Feedrate and movement alarms

  • Axis coupling

  • Hysteresis factor

  • Linear axis sag compensation

  • Calculator function

  • Easy setup and diagnosis

  • Energy saving mode

  • Software limits

  • Multi-point compensation

  • PC communication through a USB adapter

  • Bolt-hole drilling

  • Linear drilling calculation

  • Tool radius compensation

  • Part centering

  • Up to 20 tool references

  • Part alignment

  • Corner rounding/machining of arcs

  • CE and UL certified

DRO 30i

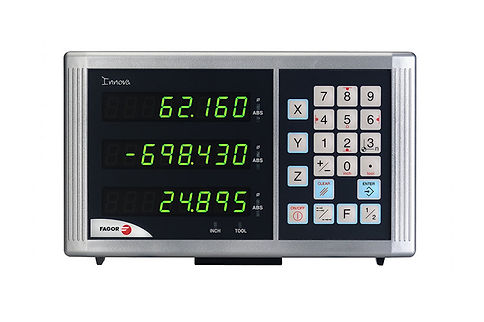

Fagor_dro_30i digital readout_milling and boring mills

The DRO 30i is a 3-Axis digital readout system for milling machines and boring mills: Innova 30i M

3-axis DRO for milling machines and boring mills: Innova 30i M

  • Preset function

  • Absolute, Incremental and Io reference (home) signals

  • Resolutions from 0.1 microns on

  • Feedrate and movement alarms

  • Axis coupling

  • Hysteresis factor

  • Linear axis sag compensation

  • Calculator function

  • Easy setup and diagnosis

  • Energy saving mode

  • Software limits

  • Multi-point compensation

  • PC communication through a USB adapter

  • Bolt-hole drilling

  • Linear drilling calculation

  • Tool radius compensation

  • Part centering

  • Up to 20 tool references

  • Part alignment

  • Corner rounding/machining of arcs

  • CE and UL certified

DRO 400i

Fagor-dro-400i-digital readout for a milling and boring mill

DRO for 3 axes milling machines and boring mills: Innova 400i

  • Preset function

  • Absolute, Incremental and Io reference (home) signals

  • Resolutions from 0.1 µm

  • Feedrate and movement alarms

  • Axis coupling

  • Linear axis sag compensation

  • Calculator function

  • Easy setup and diagnosis

  • Software limits

  • Multi-point compensation

  • PC communication through a USB adapter

  • Bolt-hole drilling

  • Linear drilling calculation

  • Grid pattern drilling

  • Go to a particular position

  • Axis feedrate display

  • On-screen guided help, with graphics

  • Tool radius compensation

  • Part centering

  • Up to 100 tool references

  • CE certified

  • 7" color screen

DRO 400i-P

Fagor-dro-400i-p digital readout for-milling machines-and-boring mills.

DRO for 2, 3 and 4 axes milling machines and boring mills: Innova 400i-P

  • Preset function

  • Absolute, Incremental and Io reference (home) signals

  • Resolution from 0.1 µm

  • Feedrate and movement alarms

  • Axis coupling

  • Hysteresis factor

  • Linear axis sag compensation

  • Calculator function

  • Easy setup and diagnosis

  • Energy saving mode

  • Software limits

  • Multi-point compensation

  • PC communication through a USB adapter

  • Bolt-hole drilling

  • Linear drilling calculation

  • Grid pattern drilling

  • Go to a particular position

  • Axis feedrate display

  • On-screen guided help, with graphics

  • Tool radius compensation

  • Part centering

  • Up to 100 tool references

  • Part alignment

  • Corner rounding/machining of arcs

  • CE and UL certified

  • 7" color TFT screen

  • Part-program programming and backup

  • X, Y, Z, W machining plane selection

  • Up o 4 feedback axes and display on the main screen

  • independent linear and angular feedback, 4-axis display, slope of each axis

  • Probe

Milling System Caparisons

20i M :  Display: LED            Axes:  2.

30i M :  Display: LED            Axes:  3.

400i   :  Display: 7" Color     Axes:  up to 3 selectable by parameter

400i-P:  Display: 7" Color     Axes:  up to 4 selectable by parameter.

Fagor Digital Readouts for Manual Lathes

Innova 20i T for Lathes

fagor_dro_20i digital readout for lathes

2-axis DRO for lathes: Innova 20i T

  • Preset function

  • Absolute, Incremental and Io reference (home) signals

  • Resolutions from 0.1 microns on

  • Feedrate and movement alarms

  • Axis coupling

  • Hysteresis factor

  • Linear axis sag compensation

  • Calculator function

  • Easy setup and diagnosis

  • Energy saving mode

  • Software limits

  • Multi-point compensation

  • PC communication through a USB adapter

  • Taper calculation

  • Z axis coupling

  • Up to 20 tool references

  • Preset in HOLD mode

  • CE and UL certified

DRO 30i for Lathes

fagor_dro_30i for lathes

3-axis DRO for lathes: Innova 30i T

  • Preset function.

  • Absolute, Incremental and Io reference (home) signals.

  • Resolutions from 0.1 microns on.

  • Feedrate and movement alarms Innova 30i T

  • Axis coupling.

  • Hysteresis factor.

  • Linear axis sag compensation.

  • Calculator function.

  • Easy setup and diagnosis.

  • Energy saving mode.

  • Software limits.

  • Multi-point compensation.

  • PC communication through a USB adapter.

  • Taper calculation.

  • Z axis coupling.

  • Up to 20 tool references.

  • Preset in HOLD mode.

  • Axis feedrate display.

  • CE and UL certified.

DRO 400i For Lathes:

Fagor-dro-400i-lathe digital readout

DRO for 3 axes lathes: Innova 400i

  • Preset function

  • Absolute, Incremental and Io reference (home) signals

  • Resolutions from 0.1 µm

  • Feedrate and movement alarms

  • Axis coupling

  • Linear axis sag compensation

  • Calculator function

  • Easy setup and diagnosis

  • Software limits

  • Multi-point compensation

  • PC communication through a USB adapter

  • Taper calculation

  • Turning

  • Facing

  • Up to 100 tool references

  • Go to a particular position

  • Axis feedrate display

  • On-screen guided help, with graphics

  • CE certified

  • 7" color screen

DRO 400i -TS for Lathes:

Fagor-dro-400i-ts-720x480- digital readout for lathes.

Lathe Comparison of Systems:

DRO for up to 4 axes lathes: Innova 400i-TS

  • Preset function

  • Absolute, Incremental and Io reference (home) signals

  • Resolutions from 0.1 microns on

  • Feedrate and movement alarms

  • Axis coupling

  • Hysteresis factor

  • Linear axis sag compensation

  • Calculator function

  • Easy setup and diagnosis

  • Energy saving mode

  • Software limits

  • Multi-point compensation

  • PC communication through a USB adapter

  • Taper calculation

  • Turning

  • Facing

  • Z axis coupling

  • Up to 100 tool references

  • Preset in HOLD mode

  • Go to a particular position

  • Axis feedrate display

  • On-screen guided help, with graphics

  • CE and UL certified

  • 7" color screen

  • Constant Surface Speed (CSS)

  • Special inputs: Emergency input, analog input for the potentiometer, external push buttons (M3, M4, Stop, etc.)

  • Analog and digital outputs

  • It admits an encoder at the spindle

20i M :           Display: LED            Axes:  2.

30i M :           Display: LED            Axes:  3.

400i   :           Display: 7" Color     Axes:  up to 3 selectable by parameter

400i-TS:         Display: 7" Color     Axes:  up to 4 selectable by parameter.

Feedback Systems for General Purposes

DRO 10i General Purpose

fagor_dro_10i- digital readout is for general use.

1-axis DRO for general purpose applications: Innova 10i

  • Preset function

  • Absolute, Incremental and Io reference (home) signals

  • Resolutions from 0.1 microns on

  • Feedrate and movement alarms

  • Axis coupling

  • Hysteresis factor

  • Linear axis sag compensation

  • Calculator function

  • Easy setup and diagnosis

  • Energy saving mode

  • Software limits

  • Multi-point compensation

  • PC communication through a USB adapter

  • Display of maximum, minimum coordinates and the difference between them

  • Connection to linear and angular axes

  • CE and UL certified

DRO 20i General Purpose

fagor_dro_20i is a general purpose readout

2-axis DRO for general purpose applications: Innova 20i

  • Preset function

  • Absolute, Incremental and Io reference (home) signals

  • Resolutions from 0.1 microns on

  • Feedrate and movement alarms

  • Axis coupling

  • Hysteresis factor

  • Linear axis sag compensation

  • Calculator function

  • Easy setup and diagnosis

  • Energy saving mode

  • Software limits

  • Multi-point compensation

  • PC communication through a USB adapter

  • Display of maximum, minimum coordinates and the difference between them

  • Connection to linear and angular axes

  • CE and UL certified

DRO 400i For General Purpose and Grinders


dro-400i-general purpose is a digital readout

DRO for grinders and general purpose applications: Innova 400i

  • Preset function

  • Absolute, Incremental and Io reference (home) signals

  • Resolutions from 0.1 microns on

  • Feedrate and movement alarms

  • Axis coupling

  • Hysteresis factor

  • Linear axis sag compensation

  • Calculator function

  • Easy setup and diagnosis

  • Energy saving mode

  • Software limits

  • Multi-point compensation

  • PC communication through a USB adapter

  • Go to a particular position

  • Axis feedrate display

  • On-screen guided help, with graphics

  • CE and UL certified

  • 5.7" color TFT screen

FAGOR TURNKEY KITS

Fagor covers all the bases with their Turnkey Kits, offering Turnkey for Machine Applications, for Turning CNC Systems and for CNC Milling Systems.  Each package comes Pre-engineered CNC & Servo Package custom built per customer specications and fully functional upon arrival.

Pre-engineered CNC & Servo Package custom built per customer specications and fully functional upon arrival.

FAGOR 8058 CNC PACKAGE upgrades your mill to a true CNC mill

FAGOR CNC MILL KIT:

FAGOR CNC BED MILL KIT

FAGOR CONTROL FOR LATHES
FAGOR's CONTROL for a BEDMILL

FAGOR CNC LATHE TURNKEY KIT

FAGOR's very large TURNKEY Packages

Pre-engineered CNC & Servo Package custom built per customer specifications and fully functional upon arrival.

Features:

  • Conversational Tool-Offset mode allows for quick and easy tool setting

  • Interactive ICON based conversational programming system.

  • One screen – one operation, fill in the blanks & press cycle start

  • Numerous predefined milling & turning cycles for ease of programming

  • Built-in Mini CAD/CAM system

  • Powerful Teach-in mode standard

  • Tool path and solid graphic simulation standard

  • Unique & Powerful Dynamic Tool Inspection mode also standard

  • 10.4″ Color TFT LCD screen

  • 4th axis ready and capable

  • Most Powerful Standard Servo Motor system offered!

  • X,Y,Z Ball Screws and X,Y,Z brackets (milling)

  • Smart Z axis quill mount including linear encoder & cable



Other Packages Include:

  • TURNKEY PKG for CNC Turning  Systems

  • TURNKEY PKG for CNC  Milling Systems.

Find out More: sales@rmscnc.com



  • Instagram
  • Facebook
  • LinkedIn
  • YouTube

OVER 45 YEARS EXPERIENCE IN MACHINE TOOL TECHNOLOGY



Our over 45 years in the machine tool industry, rebuilding, repairing, and upgrading machine tools establishes us as best machine tool distributor in Ohio.

Our machine tools come from the finest machine tool builders around.

Better Business Bureau A+ rating
  • Our history of German-style Machine Tool Rebuilding, provides customers an informed purchase experience, allowing customers to see the machine builds & performances from a machine tool rebuilder's perspective thus purchasing the right machine for their specific applications.

  • And we support all our sales, long after the sale.

  •  We sell machine tools, industrial equipment, attachments, measuring and feedback, making us your expert one-stop for all  your machine tool  &  support industrial equipment, and more.

  • We are both a HEIDENHAIN and an ACU-RITE distributor for over 25 years, factory-trained in the Millpwr G2,

  • Readout Installations available with our sales.

1529 Cottage Street, Ashland, OH 44805

Building C.

Located right between Cleveland & Columbus right off I-71.

bottom of page
