PALMARY CYLINDRICAL GRINDERS
Palmary Grinders are designed and researched through years of efforts, The PALMARY new generation of CNC Cylindrical Grinders will give you competitive edge in today's competitive environment.
With our new partnership with Southern Grind, we announce our new distributorship: Palmary Grinders. Palmary offers a wide variety of top quality grinders for every type of grinding application.
Palmary grinders are Taiwanese built with an excellence and a dedication to precision and perfection. Palmary keeps pace with this ever -changing industry. These CNC and manual grinders cover all your grinding needs.
Palmary offers Cylindrical, Centerless, Internal, Vertical, Surface and Special Purpose Grinding.
CNC Cylindrical Grinders:
2040, 3240, 3260, 32100, 4240,4260,42100,42150,42200
The CNC Cylindrical Grinders from Palmary and imported from Southern Grind for us offer a competitive edge for today's precision grinding requirements. They feature unmatched accuracy, grinding quality and outstanding performances.
These machines were specially designed with a fine feed allowing for mirror-effect grinding and end face grinding easily achieving the high accuracy you need.
The wide range of optional equipment is available to meet all your requiements and effectively offers upgrades to the machine's performaces.
"Engineered, Designed and Built For Sub-Micron Grinding. PALMARY is Your Answer"
OCD-4020 SERIES
Their rigid and stable construction as well as the special wheel spindle design are combined with an advanced CNC control to make cylindrical grinding easier and more accurate.
RIGID WORK SPINDLE HEAD:
The rigid constructed spindle head employs high precision bearings assuring maximum spindle stability. This guarantees outstanding accuracy for external and internal diameter grinding (opt.)and face grinding.
Precision Wheel Spindle
The grinding wheel spindle is precisely machined from high-quality alloy steel, normalized, tempered, carburized, and sub-zero treated and precisely ground and then mirror-effect treated.
This results with Non-deformation, Maximum wear resistance and lifetime accuracy is assured.
WHEEL SPINDLE HYDRO-STATIC BEARING
The Hybrid hydrostatic bearings are used for the wheel spindle. Metal to metal contact will never occur with these highly rigid bearing designs that also prevent vibration.
TAILSTOCK LUBRICATION SYSTEM
The Tailstock Lubrication System comes with an automatic oil bath lubrication system which maintains the high level of accuracy of these grinders. It comes with an oil level gauge to ensure a quick oil level checks.
The massive machine construction combined with through treatment on structural parts is a critical factor to assure lifetime accuracy of a grinder. The CNC cylindrical grinder is manufacturing by an advanced structure design concept and subject to a comprehensive heat treatment. This guarantees consistent accuracy year after year.
-
The machine structure is manufactured from high-quality Meehanite cast iron, heat treated and stress relieved. for outstanding stability without deformation.
-
The lower center of gravity of the bed enormously upgrades machine stability.
-
The bed is scientifically rib reinforced for outstanding stability.
-
The entire machine structure is ergonomically designed for added operational convenience.
-
Slideways are precision ground and scraped.
CNC CYLINDRICAL GRINDERS:OCD HEAVY- SERIES
OCD SERIES: Heavy-Duty CNC SERIES
-
OCD 45150
-
OCD 45220
-
OCD 45300
-
OCD 45400
-
OCD-65150
-
OCD-65220
-
OCD-65300
-
OCD-65400
The external wheel is able to do formed O.D. grinding simultaneously, in order to manage the total vertical conformity and improve the grinding efficiency.
OCD SERIES' RIGID BODY:
The re-inforced build with a low center of gravity, and the rigid base, this Meehanite cast iron results in a precision machine body.
OCD SERIES'WORK HEAD
The OCD work head is driven by a servo motor which provides for stepless speed change. It is supported by a precision beveled bearing, which provides a vibration-free ability.
OCD SERIES: TAILSTOCK
The OCD series features a direct drive hydraulic tailstock with Micro-adjustment. This tailstock is equipped with hydraulic and stopper for easy operation. It also features horizontal air bearing designed for easy displacement, reducing friction and increasing longevity.

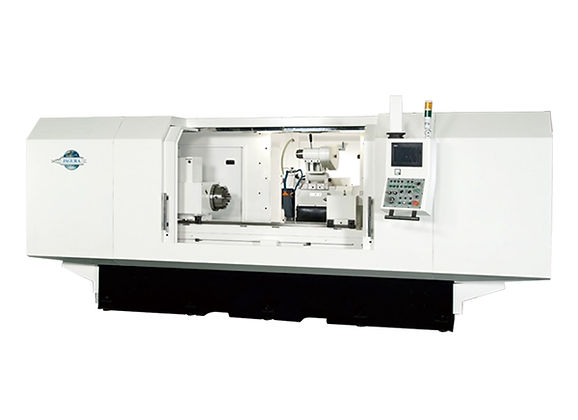

OCD SERIES: 45300 Pictured Below
OCD-6500 SERIES Pictured Below
HIGH PRECISION CYLINDRICAL GRINDERS
"Advanced NC Control for User-friendly Operation"
The Palmary NC Control utilizes State-of-the-art-Technology to bring you high-precision cylindrical grinders with precision and excellence.
The grinder allows for various grinding applications with changeover ease.
STRAIGHT PLUNGE GRINDING:
For small lot production, use the automatic feed combined with sparkout timer to achieve superior grinding quality.
For mass production, use 2-step automatic feed and 2-step automatic measurement device (optional) for upgrading productivity and grinding quality.
SHOULDER GRINDING:
Provides workpiece outside diameter and shoulder grinding accomplished at a time.
Easy to set up. Simply clamp the workpiece between two centers, mount the grinding wheel on the right side of the wheel head and swivel the heat to a degree for perfoming the grinding.
TRAVERSE GRINDING:
Use automatically intermittent feed combined with hydraulic drive of the table for the most effective traverse grinding operations.
END SURFACE GRINDING:
Dismantle the spindle head cover. Mount a 3 -Jaw or 4- Jaw chuck. Change the position of the pin for the chuck rotation.
Position the pin at a 90 degree angle for end surface grinding.
TAPER GRINDING:
Hold the workpiece by a chuck or two centers. The table and the wheel head can be easily adjusted and swiveled.
INTERNAL GRINDING:
To proceed with internal grinding with a hinge-type internal grinding attachment (optional accessory) simply pull down the internal grinding spindle and fix it in place.
The GU20x40NC is a High- Precision Cylindrical Grinder with the NC Controlled Series.
This grinder features:
-
Distance between centers 400mm.
-
Swing over table 200mm.
-
Max. grinding diameter Ø180mm.
-
NC computer controlled combined with conversational.
-
Variabke spindle speed 10~300rpm.
-
Automatic feed is driven by servomotor.
-
Hydraulically operated traverse feed.
This GU32x60NC is a high precision cylindrical grinder with NC controls.
The swing over the table is 320mm.
The Max. grinding diameter of Ø300mm.
The GU42x60NC: high-precision cylindrical grinder with NC controls:
The swing over the table is 420mm and a Max. grinding diameter of Ø400mm.
Like the GU32x60NC the GU42x60NC is a highly productive precision cylindrical grinder.
FEATURES:
-
The OCD series features the newly developed EXTOMAX that breaks through the original limited design of medium -and small-sized machine tools.
-
Re-enforced structure, low gravity and high rigidity machine base, made of Meehanite cast iron through annealing and an aging treatment, incorporated into a no-deformation and a precise machine body.
-
Longitudinal and traverse sliding tables, with enlarged overall travel and rail way width, precision scrapping performed on both the horizontal and vertical slides, coupled with the hydrostatic system provides light and steady movement of the sliding table, with repeated precision reaching up to micron level.
-
The grinding wheel spindle is designed with a hydrostatic bearing, free of metal friction and thermal deformation, allowing smooth operation within the oil film of the spindle.
Each Model Shares These Common Features:
-
Distance between centers: 600mm.
-
NC computer controlled combined with conversational operation control for maximum operational convenience.
-
Various spindle speed 10~300 rpm, driven by a Servomotor.
-
The Automatic Feed is driven by a Servomotor.
-
They have a Hydraulically operated traverse feed.
These High Precision cylindrical NC controlled grinders features these models:
-
GU32x100NC
-
GU32x150NC
-
GU32x200NC
-
Swing over table: 320mm.
-
Max. grinding diameter Ø300mm
-
-
GU42x100NC
-
GU42x150NC
-
GU42X200NC
-
Swing over table 420mm
-
Max. grinding diameter Ø400mm
-
ECONOMIC SERIES: Manual Grinders
Palmary is committed to excellence and their manual grinders are no different. They offer precision and excellence in their features and construction.
The GU20x40S offers a quality, high-precision small cylindrical manual grinder for your shop.
-
Distance between centers: 400mm.
-
Swing over the table: 200mm.
-
Variable Spindle Speed: 1-~300 rpm. Frequency inverter control type.
-
Semi-auto feed. Hydraulically operated traverse moving.
-
Wheel head provides rapid feed and manual feed for grinding.
The GU32 x 60S and GU42 x 60S share these common features:
-
Distance between centers: 600mm.
-
Variable Spindle speed: 10~ 300 rpm, driven by a servomotor.
-
Semi-automatic feed. Hydraulically operated traverse moving.
-
Wheel head provides rapid feed and manual feed for grinding.
-
GU32 x 60S:
-
Swing over the table is 320mm.
-
Max. grinding diameter Ø300mm.
-
-
GU42x60S:
-
Swing over the table is 420mm.
-
Max. grinding diameter Ø400mm.
-
-
GU32x100S:
-
Swing over table 320 mm.
-
Max. grinding diameter Ø300mm.
-
-
GU42x100S:
-
Swing over table 420mm.
-
Max. grinding diameter Ø400mm.
-
COMMON FEATURES:
-
Distance between centers: 1,000 mm.
-
Variable spindle speed 10~300rpm, driven by a servomotor.
-
Semi-auto feed. Hydraulically operated traverse moving.
-
Wheel head provides rapid feed and manual feed for grinding.
GU32x150S & GU32x200S:
-
Swing over the table 320mm.
-
Max grinding diameter Ø300mm.
GU42x150S & GU42x200S:
-
Swing over the table 420mm.
-
Max. grinding diameter Ø400mm.
COMMON FEATURES:
-
Distance between centers: 1,500mm, 2,000 mm.
-
Variable Spindle speed: 10~300 rpm., driven by a servomotor.
-
Semi-auto feed. Hydraulically operated traverse moving.
-
Wheel head provides rapid feed and manual feed for grinding.
