Baileigh Industrial Shears & Rolls

Baileigh Industrial offers four different shears for your shop. Each comes with different features for the different applications that your shop might have. Baileigh Industrial is a quality company, offering quality machinery, products and attachments. Their quality is what made us become your Baileigh Industrial distributor.

Baileigh Throatless Manual Sheet Metal Shears

The Baileigh throatless manual sheet metal shears come with three different models.

These throatless manual sheet metal shears make it easy to cut large panels and save production time.

The design of the cast-iron base guides the material away from the blade, so you can cut without trimming.

The cast-iron frame keeps the shear working smoothly and accurately for many years!

Throatless Manual Sheet Metal Shears: ID#1005677

ID# 1005677 has a 4.25" blade length, cuts 14 gauge mild steel and weighs 18 lbs.

ID# 1010422 has 4.25" blade length, cuts 10 gauge mild steel and weighs 50 lbs.

ID# 1010423 has 5.25" blade length with 3/16" mild steel capacity and is 75 lbs.

Baileigh-1005677-throatlessmanual-sm-shears

SF-2516E FOOT SHEARS

ID#1007020 Foot Shear also called a Stomp Shear. This shear features the following:

High-carbon, high-chromium blades.
Front support arms with squaring bar.
Spring-assisted operation
4 sided blades
Back gauge included.
Finger guard.

SH-5210 HYDRAULIC POWERED SHEAR

ID#1007100

This 52" x 10 - gauge mild steel capacity hydraulic shear has multi-sided blades and back and side gauges.

It comes with a 5 HP motor and can do 28 strokes per minute.

FEATURES:
Shear Length: 52" 1321mm.
Thickness: 10ga. ( 13 ga.)
Min. Thickness: 24 ga.
Front Gauge Length: 24" 609mm
Back Gauge 24" 609mm.
Strokes per min. 28
Blade Angle: 1°
Motor: 5HP.
Power Requirements: 220V 1-PH
Shipping Dim. (L x W x H) 75" x 36" x 53" 1905 x 914 x 1346 mm.
Shipping Weight: 3,000 lbs. 1364 kgs.

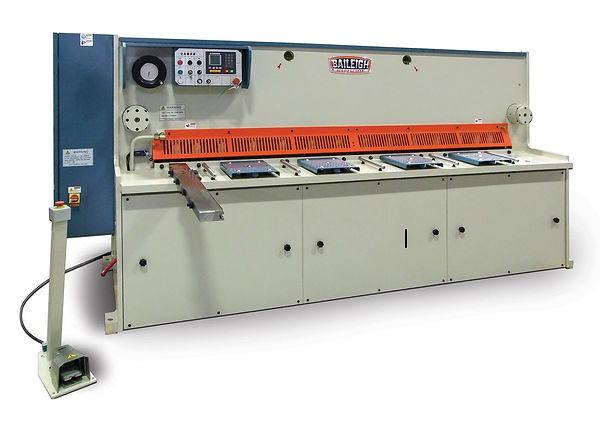

Baileigh's SH-702-HD SHEAR:

Baileigh SH-70250-Heavy duty hydraulic shear

This heavy-duty shear ID#1007179 is a hydraulic shear that comes with plenty of great features:

FEATURES:

96" X 1/4" mild steel capacity.
Front material guides.
Fast blade gap adjustment.
Shadow line for material placement.
4-sided blades for long life.
220V 3PH

SPECIFICATIONS:

Shear Length: 96" 2500mm
Mild Steel: .250" 6.3mm
Stainless Steel: .177" 4.5mm.
Min. Thickness: 18 ga.
Back Gauge Length: 23.62" 600mm
Blade Rake Angle: 1.5°
Blade Clearance: Manual Hand Wheel.
Motor: 10HP
Power Req. 220V 3PH
Shipping Dim. (Lx W x H) 143" x 80" x 73" 3632 x 2032 x 1854mm
Shipping Weight: 10,525 lbs. 4785 kgs.

Baileigh Rolls

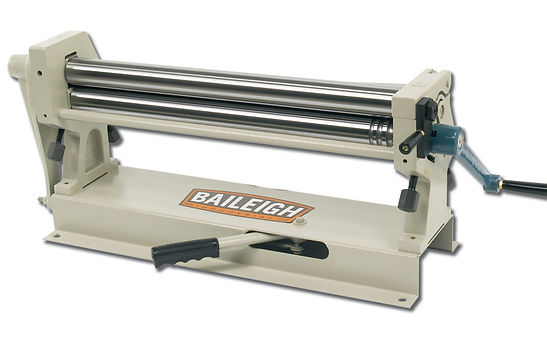

Baileigh Manual Slip Rolls

In addition to these two manual slip rolls for your shop, Baileigh offers an electric powered, and hydraulic roll backs with digital readouts. These top slip rolls make a great addition to any shop.
