Baileigh Sheet Metal & Press Brakes

Baileigh Industrial Products has long been an affordable solution for all types of equipment, especially sheet metal brakes for manufacturing.

Built to the standards we like in industrial equipment.

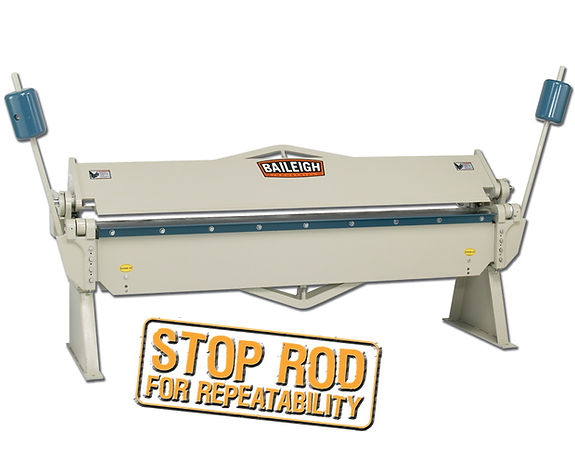

HB-9612 HEAVY-DUTY
MANUALLY OPERATED HAND BRAKE

Baileigh-handstraightbrake-1004652.

This Baileigh ID# 1004652 sheet metal brake is a  manually operated brake that also goes by the name straight brake.

It has 96" x 12 gauge mild steel capacity and it includes a floor stand

HB-96 FEATURES:

  FEATURES:

Length:              96" or 2438mm

Thickness:          12 ga. (16 ga)

Max. Opening:   2.08"   53mm.

Bend Angle:       0-135°

Beam Adj.           1"      25.4mm

Min. Rev. Bend:   .625   16mm.

Shipping Dim.      123" x 34" x 40"   3124 x 864 x 1016mm.

Shipping Weight:  2,640 lbs.    1204 kgs.

BB-4816M-VS: Manually Operated Magnetic Sheet Metal Brake

Baileigh-1231889 sheetmetalbrake-manual

FEATURES.

  • 48" X16-Gauge mild steel capacity.

  • Magnetic clamping brake.

  • Unlimited box depth.

  • Includes multiple finger lengths. (1", 1-1/2", 2", 2-3/4", 5-1/2" and 11"

  • Bending stop included.

  • 10-piece clamp set.

  • 220V 1-Phase.

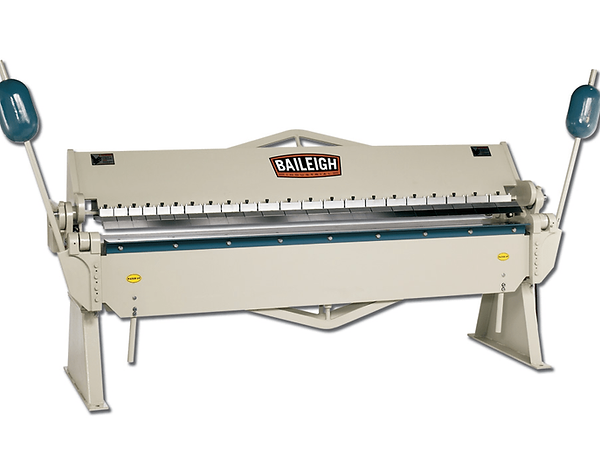

BB-7212 Heavy-Duty Manually Operated Box and Pan (Finger) Brake.

baileigh-1000553- heavy duty manuall finger brake

BB-7212 Heavy-duty Manually Operated Box and Pan (Finger) Brake features:

  • 72" x 12-gauge capacity.

  • Heavy-duty

  • Bend angle indicator and stop rod for repeatability.

  • Adjustable counterweights for apron lift assist.

  • Adjustable beam for varying sheet thickness.

  • Sturdy floor stand.

  • 2-piece hardened finger assortment: 6-3", 3-4", 6-5" , 2-6"

  • 6" box depth.

FEATURES:

Length:                            72"       1830mm

Thickness (SS)                  12 ga. (16 ga.)

Bend Angle:                     0-135°

Finger Sizes:                    3" -4" -5" -6"

Beam Adjust.                   1"        25.4mm.

Min. Reverse Bend:          .625"   16mm.

Box Depth:                       6"        152mm.

Shipping Dim.                  97" x 34" x 44"     2464 x 864 x 1118mm.

Shipping Weight:             2,420 lbs.               1100kgs.
