Republic Lagun:

Introducing Republic Lagun, Our Newest Machine Tool Company

With over more than 95,000 machines installed worldwide, Lagun is one of the oldest machine tool OEMs in the United States.  We are proud to be your Authorized Ohio Distributor.

Dedicated. Reliable. Honest.

Three words that Lagun doesn't take lightly....And neither do we.

​

We are proud to now offer Lagun machine tools to our customers. Lagun designs and builds their manual and CNC machine tools with a unfailing commitment to quality, performance and value.



Lagun fits perfectly into our machine tool lines, offering the the highest quality machine tools to our customers. Lagun has a long and prestigious reputation for quality.

​

From power generation, renewable energy, aerospace, medical, automotive, railway, earthmoving, iron, steel, oil, gas, construction and the Department of Defense manufacturing, Lagun and now Rossi Machinery has you covered.

CNC Vertical Bed Mills:

800, 1000, 1300, 1600

Vertical Horizontal Mills:

FU, FUTV, FCM

Lagun:
CNC Vertical Bed Mills:

republic-lagun-VBMA-850-series-vt-hoz-mills

​FEATURES:

​​

  • Stress-relieved, rigid Meehanite castings

  • Hardened & ground box ways with Turcite lining

  • 5 HP motor.

  • Hi-Low back gears for heavy cutting. (Strong back gear transmission. )

  • Full automatic lubrication

  • Precision ball screws on all three axes

  • AC brushless axes servo motors & drives

  • Head counterweight system for the Z axis

  • Flood coolant system with rear splash guard

  • Chip & coolant tray

  • Steel telescopic way covers on X &Y axis.

  • Halogen work light

  • Contouring control system on pendant

  • All necessary tools and manuals

  • Arranged for 3/60/480 volt operation

  • Hand wheels on X and Y axis ; Z hand lever . All axis can be also move by a Manual Pulse Generator or MPG (optional)

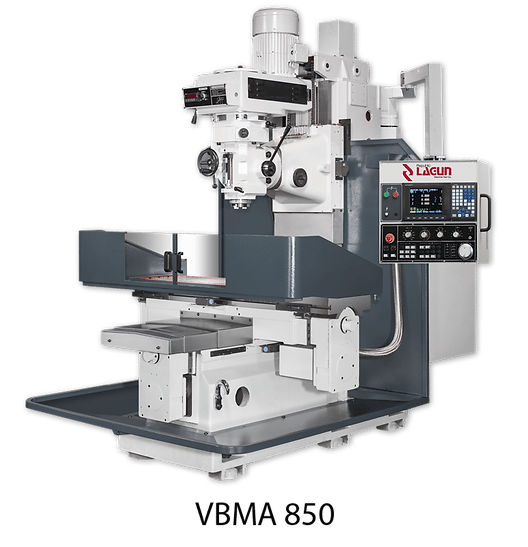

Lagun Engineering’s VBMA-850 Vertical Bed Mill, featuring standard Fanuc 0i-MF controls, extra wide saddle assembly, hardened and ground large table (12″ x 50″). These outstanding features make the VBMA-850 ideal for large dies and molds.

​

Models in this Series:

800, 1000, 1300, 1600

VBMA 800

Table Size:     12" x 50" (305 x 1,270 mm)

​

Main Motor:  5 HP. (3.7 kW.)

​

Spindle Speed Range: 60-5,000 RPM.

VBMA 1300

Table Size:     18" x 71" (450 x 1,800 mm)

​

Main Motor:  5 HP.  (3.72 kW.)

​

Spindle Speed Range: 60-5,000 RPM.

VBMA 1000

Table Size:     16" x 60" (400 x 1,520 mm)

​

Main Motor:  5 HP. (3.72 kW.)

​

Spindle Speed Range: 60-5,000 RPM.

VBMA 1600

Table Size:     20" x 87" 500 x 2,200mm)

​

Main Motor:  5 HP. (3.72 kW.)

​

Spindle Speed Range: 60-5,000 RPM.

Please call for information: 866-622-4488

​

As your new Republic Lagun Distributor in Ohio, we are working to load this site with all the available machine tools from Lagun

Lagun:
Vertical/Horizontal Mills:

FU Vertical Horizontal Mills

LAGUN-FU-130- VERT-HORZ MILL

Republic Lagun Machine Tool FU-130-EF Universal Horizontal Mill

 FEATURES:

  • Swivel table ±45 degrees

  • Flood coolant system

  • Low voltage controls

  • Pendant controls

  • Variable feeds in 3 axis

  • 3 axis rapid traverse

  • Spindle brake

  • Auto lube system

  • Climb milling control

  • Hardened and ground ways

FU 130 SU SERIES:

Table Size:  51" x 11"  (1,300 x 280 mm).

​

Max. Weight on Table:  660 Lbs. (300 kg.)

​

Main Motor:  5.5 HP  (4.1 kW.)

Republic Lagun’s Universal Horizontal Mill, model FU-130-EF, features components such as two arbor supports, milling arbor, universal table swivel, and more.



These outstanding features make the FU-130-EF ideal for industries like aerospace, health care, and job shops.

FU 152 U / FUTV 152 QM

Table Size:  60" x 13"  (1,525 x 325 mm).

​

Max. Weight on Table:  880 Lbs. (400 kg.)

​

Main Motor:  7.5 HP  (5.6 kW.)

Republic Lagun Machine Tool FU-152-EF Universal Horizontal Mill/FUTV 152 QM

FEATURES:

  • Variable spindle speeds

  • Swivel table ±45 degrees

  • Flood coolant system

  • Low voltage controls

  • Pendant controls

  • Variable power feeds in 3 axis

  • 3 axis rapid traverse

  • Spindle brake

  • Auto lube system

  • Climb milling control

  • Hardened and ground ways

LAGUN FU-152-

Lagun Engineering’s FU-152-EF Universal Horizontal Mill, featuring a multi-angle universal vertical head, one milling arbor, and a variable speed horizontal spindle. These features make this incredibly stable and versatile machine ideal for aerospace, healthcare and job shops.

FUTV-185-EF

Table Size:  73" x 14"  (1,850 x 350 mm).

​

Max. Weight on Table:  1,102 Lbs. (500 kg.)

​

Main Motor:  10 HP  (7.5 kW.)

Republic Lagun Machine Tool FUTV-185-EF Universal Horizontal Mill

 FEATURES:

  • Variable spindle speeds 3600 RPM

  • Vertical head 5 HP

  • Vertical Head Swivels +/- 90 °

  • Horizontal spindle 10. H.P.

  • Swivel table ±45°

  • Flood coolant system

  • Low voltage controls

  • Pendant controls

  • Variable power feeds in 3 axis

  • 3 axis rapid traverse

  • Spindle brake

  • Auto lube system

  • Climb milling control

  • Hardened and ground ways

FCM 152:

Table Size:  50" x 14"  (1,500 x 350 mm

​

Max. Weight on Table:  1,540 lbs. 700 kg.

​

Main Motor:  7.5 HP (5.6 kW).

LAGUN- fu-185-

FCM 185 M

Table Size:  73" x 14"  (1,850 x 350 mm.)

​

Max. Weight on Table:  1,540 lbs. (700 kg.)

​

Main Motor:  10 HP. (7.5 kW.)
