EXPAND MACHINERY

Expand Machinery Machine Tool lines

GANESH is Part of Expand Machinery.

EXPAND MACHINERY might not be the most a well known machine tool company, but they should be.



When we were approached by EXPAND MACHINERY to be their Ohio distributor, we looked at their quality builds, high-quality component parts used, and the controls that power EXPAND MACHINERY's lines.

​

We liked what we saw.  EXPAND offers customers additional CNC optional features as a standard while their competitors charge for them. We think this offers your shop a highly productive, quality machine tool with industry respected controls at pricing that just makes sense.

​

We invite you to explore EXPAND MACHINERY's Full line of manual and CNC machine tools.

​​

GANESH MACHINES:  EXPAND Machinery also owns the very popular Ganesh manual and CNC mills and lathes. Ganesh has a long history of providing manufacturers manual and CNC mills and lathes.

EXPAND offers great deals on GANESH and their other quality machine tools.

​

​

GEN MILL: Expand Machinery’s GEN MILL High Speed 3-5 Axis Vertical CNC Machining Centers come standard with Direct Drive Spindle, Chip Conveyor, Thru Spindle Coolant, Spindle Chiller and many other features to give you maximum productivity. The five axis machines come standard with glass scales in all five axis for maximum accuracy.



GEN TURN:   Expand Machinery’s GEN TURN series offers a full line of Multi Axis CNC Turn-Mill Centers and CNC Swiss Machines, covering a range from 20mm to 78mm Bar Capacity.

​



GANESH

Heavy Duty Manual and CNC Mills and Lathes

All GANESH machines are built in their ISO-9002 certified factory in Taiwan.

Ganesh Manual and CNC Big Bore Flat Bed Lathes are the heaviest duty in the industry.



Ranging from 22″ Swing to 66″ Swing, we have you covered for every size.



We go up to 315″ Between Centers to cover all the large shaft work. We offer up to 15″ Spindle Bore to handle all your big bore needs.



Our Flat Bed CNC Lathes are standard with the Fanuc CNC Control with Manual Guide i and Thread Repair Cycles to make rethreading of pipes easy and efficient.





Ganesh Heavy Duty Mills are available as a manual machine with digital Readout and as a CNC Machine with Fanuc Control. These knee and bed type mills are designed to be rugged and handle all your tough machining needs. The 50-Taper Geared Head Spindles on the vertical/horizontal manual and CNC bed type mills are built to handle everything from steel to Inconel. An optional manual 4th axis is available to access all sides of the part.

Ganesh Manual Lathes:

Ganesh: CNC Lathes

GANESH Logo

Ganesh CNC & Manual Mills

GANESH:
LATHES

Heavy-Duty Manual Lathes

Quality is built into the Ganesh machine tool line, starting with their manual lathes.

They are built in their ISO 9002 facility in Taiwan.

GTW-20 Heavy-Duty 20" Gear Head Engine Lathe:

Ganesh GTW-20 gear head lathe is on sale

GTW-20 20" Heavy-Duty Manual Gear-Head Engine Lathe:​

  • Heavy duty 10-HP D1-8 spindle with 20” Swing

  • Hardened and ground Turcite® coated bed ways

  • Hardened and ground gear

  • 12-speed geared head spindle

  • Safety foot brake

  • Safety chuck guard

  • Coolant pump standard

GT-22   22" Heavy-Duty 22" Gear Head Engine Lathe:

Expand_GANESH_GTW-22L

GT-22 22" Heavy-Duty Manual Gear-Head Engine Lathe:

  • Lardened and ground Turcite® coated bed ways

  • Lardened and ground gear

  • L2-speed geared head spindle

  • Safety foot brake

  • Safety chuck guard

  • Coolant pump standard

  • Heavy duty 15-HP D1 - 11 spindle

GTW-26  26" Heavy-Duty Manual
Gear-Head Engine Lathe:

Expand_GANESH_GTW-26L

GTW-26 Heavy-Duty Manual Gear-Head Engine Lathe:

  • Hardened and ground Turcite® coated bed ways

  • Hardened and ground gear

  • 12-speed geared head spindle

  • Safety foot brake

  • Safety chuck guard

  • Coolant pump standard

  • Heavy duty 15-HP D1 - 11 spindle

GTD-30 30" Heavy-Duty Manual Gear-Head Engine Lathe:

GANESH-MANUAL ENG LATHE-GTD-30

​GTD-30 30" Heavy-Duty Gear-Head Manual Lathe:

  • Rapid Feeds for longitudinal and & cross motion

  • 15-HP Spindle motor

  • 12-Spindle Speed Gear-Ranges for High-Torque

  • Spindle Speeds from 23 – 1300 RPM

  • A2-11 Spindle with 4-1/8” spindle bore

  • Swings 40.5” Through the Gap Bed

  • Tailstock features 2-Speed quill advance

  • 4-Adjustable longitudinal feed stops

GANESH-GTD-34-38  34"-38"Heavy-Duty Engine Lathe:

GTD-34-38

GTD-34-38  34" -38" Heavy-Duty Gear-Head Manual Lathe:​

  • Hardened and Ground Bed Ways

  • Hardened and Ground Gears

  • Heavy Duty 4-Step Geared Head Spindle

  • Coolant Pump Standard

  • Rear Spindle Mount Optional

  • 30 HP Spindle Motor

Expand_GANESH_GTD-44HLL. 44-55" big bore gear head lathes

GANESH GTD-44 HL GEAR HEAD BIG BORE LATHE:

  • Hardened and ground Turcite® coated bed ways

  • Hardened and ground gears

  • 30-HP spindle motor

  • 16-speed geared head spindle

  • Rear spindle mount optional

  • Safety chuck guard

  • Coolant pump standard

  • Up to 315-inch bed length available

EXPAND-GTD-4465-HK GANESH Precision big bore gear head lathe

GTD-44/65 HK​

44-65” Swing Heavy Duty Engine Lathe

  • Hardened and ground Turcite® coated bed ways

  • Hardened and ground gear

  • 40-HP spindle motor

  • Double-set of spindle bearings

  • Rear spindle mount optional

  • Safety chuck guard

  • Coolant pump standard

  • Heavy duty 32" bed width

GEN TURN: CNC LATHES:

GTW-30 CNC LATHE

Ganesh-GTW-30-CNC

30” Heavy Duty CNC Big Bore Lathe

FEATURES:​

  • A2-11 Spindle w/ 6-5/8” Bore

  • 30 - 1,000 RPM Standard

  • A2-15 Spindle w/ 10” Bore, 18 - 600 RPM Optional

  • 2-Gear Ranges for Increased Cutting Torque

  • 8-Station Tool Turret – Any combination of ID/OD tools

  • Dual-Turrets ( Front & Rear of cross slide ) Available

  • Bore-Bar Holder Available for rear of cross slide

  • Available in 60”, 80”, 120” & 160” Center Distances

  • FANUC 0i-TF Control and FANUC Axis & Spindle Drives

GTD-34 CNC LATHE:

30” Heavy Duty CNC Big Bore Lathe

GANESH-GTD-34-CNC

FEATURES:​

  • 30 HP Spindle Motor

  • 4-Step Geared Head Spindle

  • 4” Spindle Bore (Optional 6” and 10”)

  • Chip Conveyor Standard

  • Heavy Duty MT-6 Tailstock

  • Fanuc OiTF CNC Control with 10.4” Screen

GTD-44HK CNC LATHE:

44”-55” Swing Heavy Duty Big Bore CNC Lathes

GANESH-GTD-44HK-CNC-Lathe

FEATURES:

  • 30-HP Spindle Motor (40-HP optional)

  • 6 – 500 RPM Spindle Speeds

  • 4 - Automatically Selected Gear Ranges for High Torque

  • A2 - 11 Spindle with a 6” Bore (9”, 10”, 12” & 15” Spindle Bores Optional)

  • Rear Spindle Chuck Mount available to support long workpieces

  • Boring Bar Holder Available for back of Cross Slide

  • Optional Tool Turrets Available

  • Dual Tool Turrets Available for front & back of Cross Slide

  • Fanuc Oitf CNC Control with 10.4” Screen

GTD-44/65F CNC Lathe:

44”/65” Heavy Duty CNC Facing Lathe

GANESH-GTD-4465F-CNC

FEATURES:​

  • Automatic 4-way toolpost standard, 8 & 12 station vertical turrets are available

  • Full splash guard for chip and coolant containment

  • Link-Belt style rear discharge chip conveyor included

  • Inch/Metric threading, left or right-hand threading, single or multiple start threading

  • Built in high-capacity coolant system to flush away chips and extend tool life

  • Large fluorescent worklight

  • 3-light machine condition display lamp

  • Fanuc Oitf CNC Control with 10.4” Screen

You Get More Machine Without The Extra Cost:

Ganesh CNC & Manual Mills:

GMV-5 MANUAL MILL:
 12” X 58” Super Heavy Duty 40 Taper Milling Machine

Expand_GANESH_GMV-5L mill
Expand-Ganesh GMV-5L manual mill

FEATURES:

  • 5 HP spindle motor

  • #40 taper heavy duty spindle

  • Hardened and ground square boxways in “Y” and “Z”

  • Hardened and ground table and T-slots

  • Hardened, ground and chrome- plated quill

  • ABEC class-7 precision spindle bearings

  • Less than 0.0002-inch spindle runout

  • Built-in 1.5-HP knee powerfeed

GH-450:
59” X 17.7” Heavy Duty Vertical/Horizontal Mill

GANESH-VH-450-CNC.

FEATURES:

  • Heavy Duty BT 50 Taper Spindle

  • Hardened and Ground Gears in Milling Head

  • Automatic Lubrication System

  • Air Power Drawbar is Standard

  • Automatic Lubrication System

  • 2,200 lb Table Load Capacity

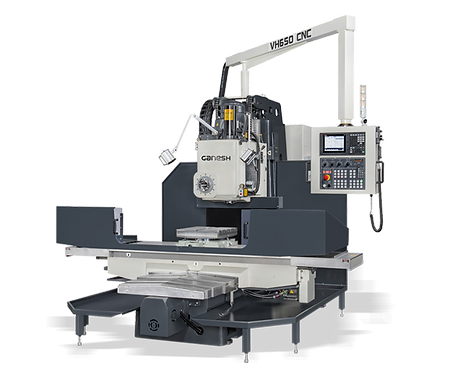

VH-650B:

86.6” X 23.6” Heavy Duty Vertical/Horizontal Mill

GANESH-VH650B CNC MILL

FEATURES:

  • Heavy Duty BT 50 Taper Spindle

  • Hardened and Ground Gears in Milling Head

  • Automatic Lubrication System

  • Air Power Drawbar is Standard

  • 4,400 lb Table Load Capacity

VH-780:
102.3” X 27.5” Heavy Duty Vertical/Horizontal Mill

GANESH-VH-780CNC.

​FEATURES:

  • Heavy Duty BT 50 Taper Spindle

  • LHardened and Ground Gears in Milling Head

  • LAutomatic Lubrication System

  • LAir Power Drawbar is Standard

  • L6,615 lb Table Load Capacity
