EXPAND MACHINERY:
GEN MILL
3-5 Axis Vertical Machining Centers
Expand Machinery’s GEN MILL High Speed 3-5 Axis Vertical CNC Machining Centers come standard with Direct Drive Spindle, Chip Conveyor, Thru Spindle Coolant, Spindle Chiller and many other features to give you maximum productivity.
The five axis machines come standard with glass scales in all five axis for maximum accuracy.
​
Many features that other machine tool companies have as options, GEN MILL offers them as standard.
You get much more machine with GEN MILL. GEN MILL offers the best controls in the industry along with their qulaity components and rigid builds. GEN MILL might not be well known, but they should be.
We liked what we saw and now we distribute them as a quality solution for a 3-5 Axis vertical machining center. We hope you take a look; you won't be disappointed.
GEN MILL SERIES INCLUDES:
-
GEN MILL PM300
-
GEN MILL 5X-8
-
GEN MILL 5X-12
-
GEN MILL 5X-16
-
GEN MILL 5X-24
-
GEN MILL HSD-1000
-
GEN MILL 2416
-
GEN MILL 3120
-
GEN MILL 4024 (Most Popular)
-
GEN MILL 6328
With GEN MILL You Will Get Much More Machine for Your Money.
Today's Featured Machine:
GEN MILL 2416:
24.01″ X 15.75″
3 Axis High Speed Vertical Machining Center
FEATURING:
-
24 Tool High Speed Double Arm ATC
-
1,417 Inch per Minute Rapid Rates
-
12,000 RPM Double-Ground “Big-Plus” Spindle
-
300 PSI Through-the-Tool Coolant System
-
Spindle Chiller for Consistent Thermal Stability
-
2,700 Block Look-Ahead High-Speed Machining
GENMILL:
PM320-5XT
5-Axis Precision VMC with Turning
-
FEATURES:
-
25,000 RPM with Built-In Spindle (Optional 40,000 RPM)
-
50 Station HSK-A40 High Speed ATC
-
2,000 RPM Turning Standard
-
150mm Diameter Trunnion
-
Fanuc 31i-B5 5-Axis Simultaneous CNC Control
-
Magnetic Scales Included
-
Tool and Part Probing Included
-
Chip Conveyor Included
GEN MILL:

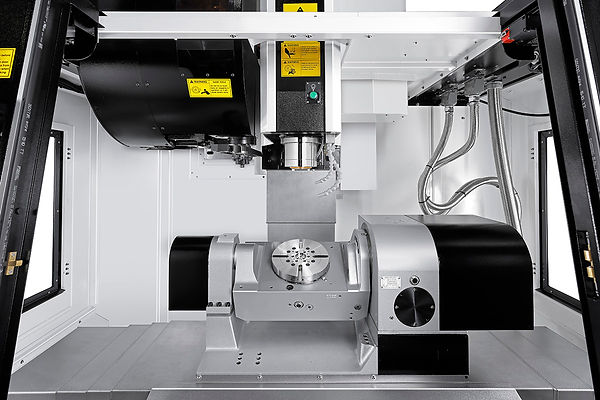

5X-8
High Speed VMC with built-in 8” Trunnion
​FEATURES:
-
12,000 RPM Inline Direct-Drive Beltless "Big-Plus" Spindle
-
15-HP Spindle Motor with Synchronous Rigid Tapping Capability
-
1,417 IPM Rapid Rates in X & Y Axis
-
24-Tool High-Speed Twin-Arm Tool Changer
-
300 PSI "Through-the-Spindle" Coolant System with Rotary Coupling
GEN MILL:
5X-12
5-Axis High Speed VMC with built-in 12″ Trunnion
​FEATURES:
-
Glass Scale Feedback on All 5-Axis
-
Roller Bearing Ways (twice as rigid as ball ways)
-
40-Tool Double Arm ATC
-
1,417 Inch per Minute Rapid Rates
-
12,000 RPM Inline Direct-Drive Beltless “Big-Plus” Spindle
-
Spindle Chiller for Consistent Thermal Stability
-
Available as 4 + 1 or 5 Axis simultaneous
GEN MILL:
5X-16
5-Axis High Precision 17.7″ VMC with Probes, Glass Scales
​FEATURES:
-
Glass Scale Feedback on All 5-Axis
-
Roller Bearing Ways (twice as rigid as ball ways)
-
40-Tool Double Arm ATC
-
1,417 IPM Rapid Rates
-
15,000 RPM Inline Direct-Drive Beltless “Big-Plus” Spindle
-
Spindle Chiller for Consistent Thermal Stability
-
300-PSI Through-the-Tool Coolant System
-
Available as 4 + 1 or 5 Axis simultaneous
GEN MILL:
5X-24
Full 5-Axis Machining Capability
​FEATURES:
-
Ø 25.6” Worm-Gear Driven Tilting Rotary Table
-
Precision Glass-Scale Feedback on X, Y, Z, and B & C axis
-
15,000 RPM Inline Direct-Drive Beltless “Big-Plus” Spindle
-
1,417 IPM rapid rates in X, & Y axis for fast production
-
60-Tool High-Speed Twin-Arm Tool Changer
-
Roller-bearing style heavy-duty linear way system use on all linear axes
GEN MILL:
HSD-1000
Double Column Super Precision VMC
FEATURES:
-
Heavy-Duty Double-Column Bridge-Style Construction. Like a CMM!
-
15,000 RPM Inline Direct-Drive Beltless Spindle (other speeds available)
-
Dual contact precision ground Cat-40 spindle (HSK available)
-
1,181 IPM rapid rates in all three axes for fast production
-
Super High-Speed CNC Control! 2,700 block look-ahead. 4,500 BPS!
-
48-Tool Automatic Tool Changer
-
Optional 50 Nano-meter Linear Scale Resolution in X, Y, Z axes
-
Large X, Y, Z-axis travels for big work –40.15” x 33.46” x 19.68”
GEN MILL:
3120
31.50” X 19.68” High Speed Vertical Machining Center
FEATURES:​
-
12,000 RPM Direct-Drive Beltless Spindle
-
Belt Type Chip Conveyor with 38” barrel height discharge
-
Mitsubishi M830 CNC Control, 2,700 Block Look Ahead
-
30-Tool High-Speed Twin-Arm Tool-Changer
-
300 PSI “Through-the-Spindle” Coolant with rotary union
-
Chip Wash- Down System
-
Full Machine Enclosure w/ Top Covers & precut exhaust duct
High Speed Vertical Machining Center
GEN MILL:
4024
40.55″ X 23.62″ 3 Axis High Speed Vertical Machining Center
FEATURES:
-
30 Tool High Speed Double Arm ATC
-
1,417 Inch per Minute Rapid Rates
-
Spindle Chiller for Consistent Thermal Stability
-
300 PSI Through-the-Tool Coolant System
-
2,700 Block Look-Ahead High-Speed Machining
-
4th & 5th Axis Wiring
GEN MILL:
6328
​FEATURES:
-
40 Tool High Speed Double Arm ATC
-
Spindle Chiller for Consistent Thermal Stability
-
12,000 RPM Double-Ground “Big-Plus” Spindle
-
300 PSI Through-the-Tool Coolant System
-
2,700 Block Look-Ahead High-Speed Machining
-
4th & 5th Axis Wiring
.jpg)
63.1” X 27.56” 3 Axis High Speed Vertical Machining Center
